Arri Geared Head
  • ArriHead

Arri Geared Head

3 Speed with built-in adjustable wedge, E.P.L

Price: $300.00 per day

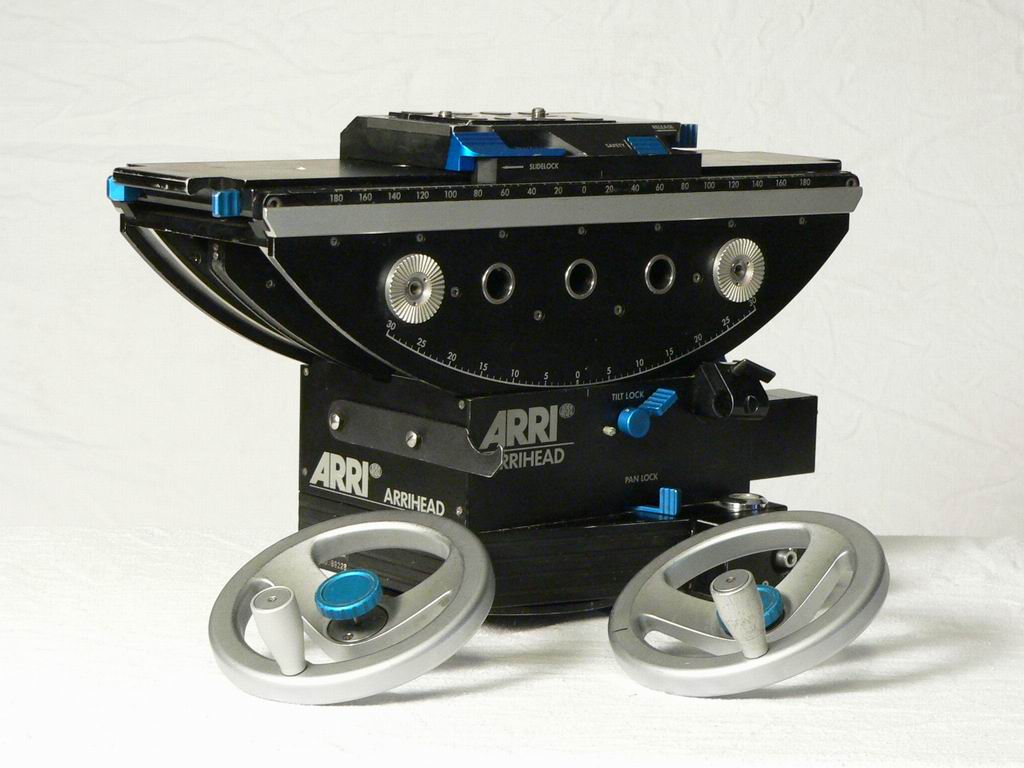

Arri Geared Head

The ARRIHEAD is smaller, lighter in weight and equally efficient as most other geared heads, with an equal equipment range and operating convenience. With this design, the ARRIHEAD is an ideal production tripod head not only for 35 mm and 16 mm cameras, but also Digital Cinema Cameras.

Arri Geared Head

Tilt Angle +/- 30 degrees w/o wedgeplate
+/- 90 degrees with wedgeplate
Wedgeplate increments are 20, 25, 30, 40, 50 and 60 degrees
Camera Mounting Sliding base for ARRI quick-release bridgeplate and other touch 'n' go systems ± 140 mm balance adjustable system ARRI Bridgeplate System
Cradle Tilt Drive via precision drive chain/pulleys, user adjustable tension V-cradle rails, ball bearings.
Tilt/Pan Drive Tilt Laterally moveable tilt handle up to 38 degrees to right. Selectable 3 Speed gear. Drive, plus neutral.
Tilt Speeds Slow – 17.5 turns for 60 degrees full tilt.
Medium – 9.25 turns for 60 degrees full tilt.
Fast – 4.75 turns for 60 degrees full tilt.
Pan Speeds Slow – 65 turns for full 360 degrees pan.
Medium – 35.5 turns for full 360 degrees pan.
Fast – 19 turns for full 360 degrees pan.
Lock Off Brakes and Friction Levers Tilt, two individual positive lock off brakes. Pan, single positive lock off brake. Note: Lock and friction levers located near hand wheels.
Gear Head Base Standard Mitchell.
Miscellaneous Self illuminating level.
Removeable wheel handle.
2 holding knobs for accessory box.
Viewfinder support bracket.
4 threaded rosettes (2 per side).
Weight With wedge and quick release bridgeplate 15 kg, 33 Ibs.
Tilt/Pan wheels 2,5 kg, 5,5 Ibs
Temperature Range - 20 C° to + 50 C°.
- 4F degrees to + 122F degrees
Max.Load 50 kg, 110 Ibs
Dimensions with Handwheels Length 566 mm/22 inch.
Width 343 mm/13 inch
Dimensions without Handwheels Length 468 mm/18 inch.
Width 267 mm/11 inch.

Please Note: All prices are listed in Australian dollars and exclude insurance, shipping and GST.
