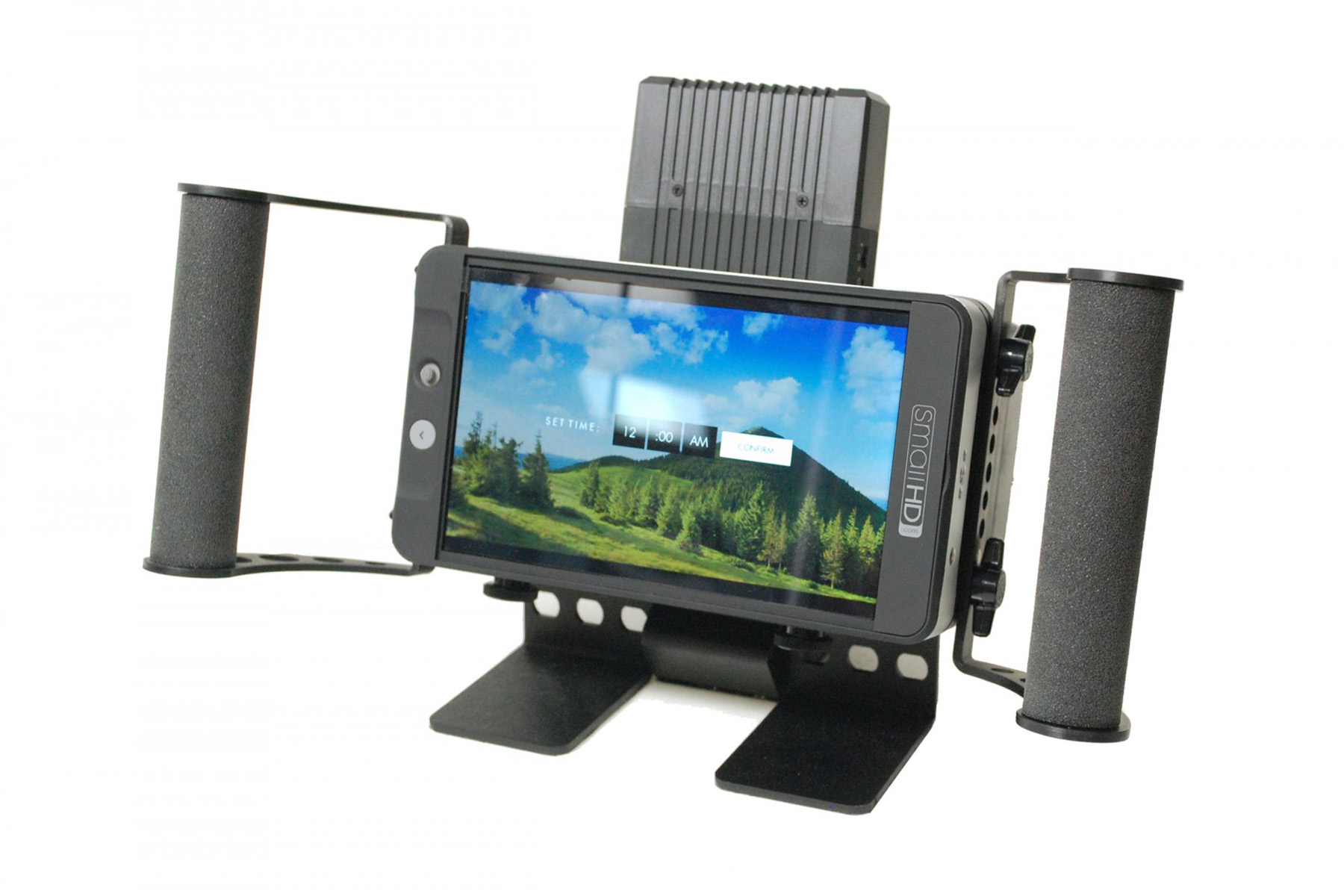

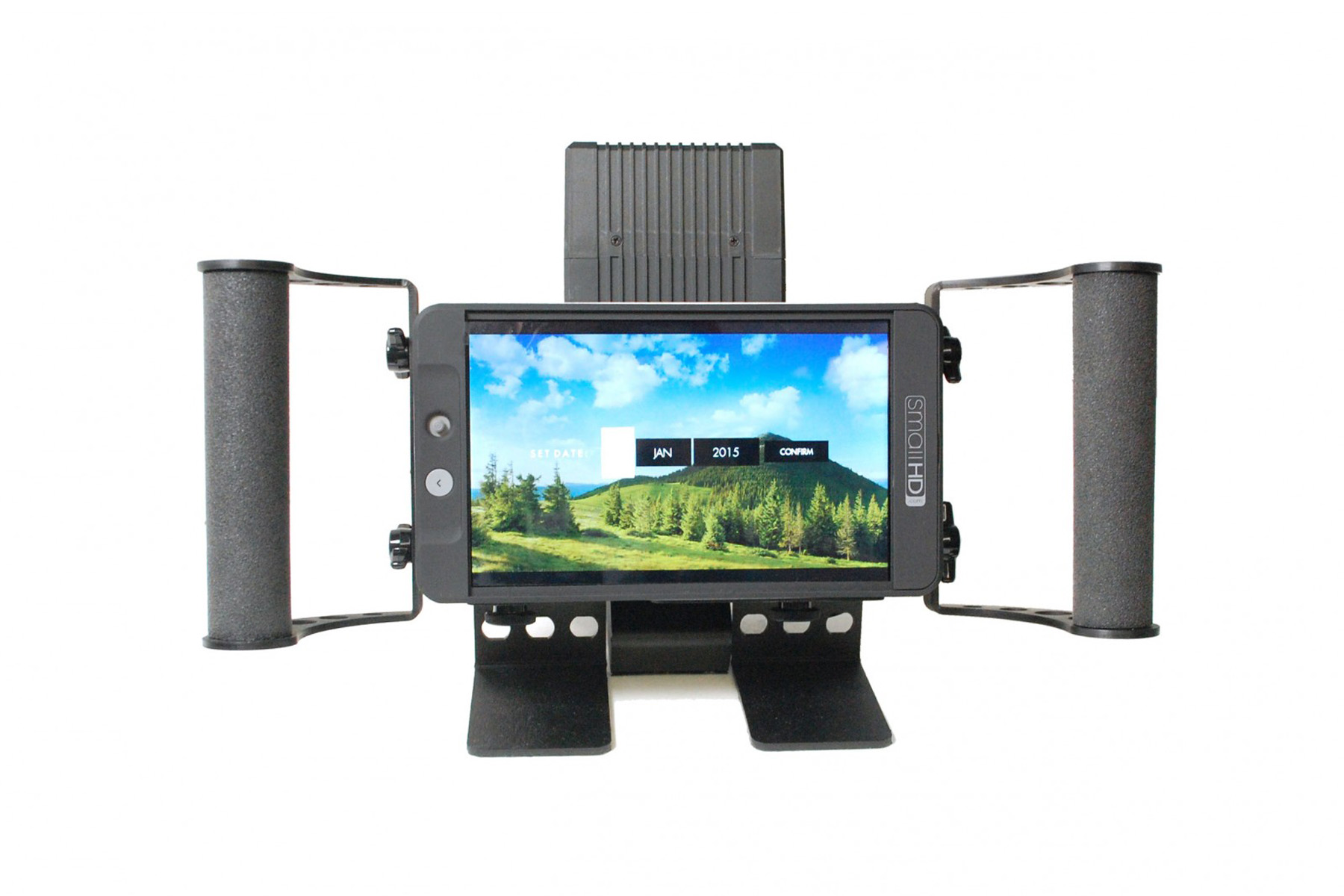

Small HD 702 Monitor & Directors Cage
Small HD 702 Monitor & Directors Cage
702 Bright Full HD Field Monitor
Price: $150 per day
702 Features Include:
Full HD 7-inch LCD Monitor with 1000 NITs Brightness
The sharpest daylight viewable field monitor available.

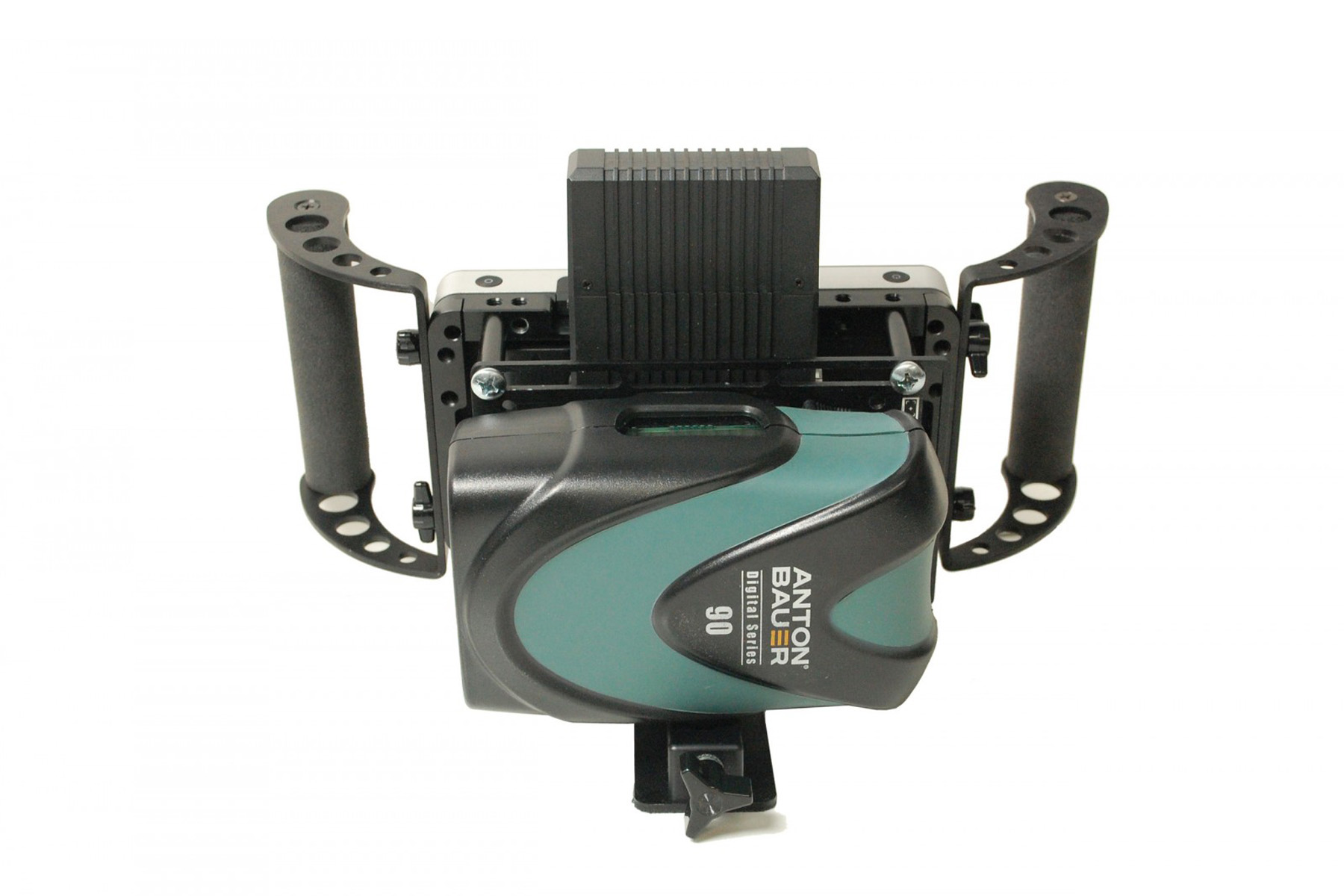

(TERADEK & V-Lock Batteries addition)
Model: MON-702
Input: SDI, HDMI
Output: SDI, HDMI
Display: 7-inch, 1920x1080, 1000nits with anti-reflective coating
Technical Specifications
Display
|
Panel Type |
LCD |
|
Size Diagonal |
7 |
|
Resolution |
1920 x 1080 |
|
Pixel Density (PPI) |
323 |
|
Aspect Ratio |
16:10 Native |
|
Active Area |
7.0 in |
|
Brightness |
1000 nits |
|
Contrast |
1000:1 |
|
Color Gamut |
85% NTSC (100% Rec 709) |
|
Color Depth |
24 Bit (8bpc) |
|
Viewing Angle |
Full 179 Degrees |
|
Backlight Type |
LED |
|
Adjustable Backlight |
Yes |
|
Temperature Adaptive Color |
Yes |
Input Signal Types/Formats
|
3G-SDI |
|
|
HD-SDI |
RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50 |
|
SD-SDI |
YCC 4:2:2 @ 10-bits: 480i29.97, 576i25 |
|
HDMI |
Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50 |
|
Component |
|
|
Composite |
|
|
Audio |
HDMI and SDI |
Output Signal Types/Formats
|
3G-SDI |
|
|
HD-SDI |
RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50 |
|
SD-SDI |
YCC 4:2:2 @ 10-bits: 480i29.97, 576i25 |
|
HDMI |
Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50 |
|
Component |
|
|
Composite |
|
|
Audio |
Stereo Out (headphones) |
Connector Type
|
SDI |
1 SDI (in), 1 SDI (out) |
|
HDMI |
1 HDMI (in), 1 HDMI (out) |
|
Component |
|
|
Composite |
|
|
Audio |
1/8in Mini Stereo Headphone |
|
Power In |
|
|
Power Out |
LP-E6 style / Sony L style |
|
USB |
Micro-USB 5V @ .5A |
Controls
|
Primary Control Interface |
Joystick + “Back” button |
|
Record/Capture |
Capture button |
|
User Defined Functions |
Uses “Pages” in conjunction with the Joystick control to provide any number of user defined monitoring options. |
|
RF Wireless Remote / External Control |
Via Remote |
|
USB Remote / External Control |
|
Data I/O
|
Storage |
SD Card (full-size) |
|
USB |
Factory use and Future user functionality |
|
Wireless |
|
|
Wifi |
|
Power
|
Connector Type |
LP-E6/Sony L style |
|
Voltage |
6.0 - 8.4 volts |
|
Power Consumption |
11 watts |
|
Battery Plate Included |
Canon LP-E6 / Sony NPF |
|
Recommended Power Supply |
LP-E6 coupler with built-in 7.2v, 2A regulator |
|
Overload Protection |
Yes |
|
Smart Battery Compliant |
Yes |
|
Battery Types |
LP-E6 and/or Sony L Series |
|
Battery Chemistry |
|
|
Output Voltage (VDC) |
|
|
Battery Capacity (mAh) |
|
|
Battery Charging Time (hours) |
|
Environmental
|
Compliance |
CE, FCC, IC |
|
Operating Temperature |
30F to 90F |
|
Storage Temperature |
0F to 120F |
|
Screen Protection |
1mm Acrylic (user replaceable) |
|
Height |
4.23" (10.74cm) |
|
Width |
7.56" (19.20cm) |
|
Depth/Length |
.95" (2.41cm) |
|
Weight (Item Only without battery) |
17oz (481.94g) |
|
Weight (Packaged) |
29.6oz (839.14g) |
|
Mount Points |
(4) ¼-20 thread points (bottom, back & sides) |
|
Note: |
|
Software
|
Pixel Zoom (type) |
2x & 4x with smooth pan via joystick |
|
Frame Guides |
Yes |
|
DSLR Scale |
Canon, Nikon |
|
Custom Scale |
Yes |
|
Anamorphic De-Squeeze |
Yes |
|
Image Rotate(Manual/Automatic) |
Yes |
|
Image Flip (Manual/Automatic) |
Manual and Auto Flip |
|
Cross Conversion |
Yes |
|
Focus Assist (Colors) |
Yes |
|
Peaking |
Yes |
|
False Color |
Yes |
|
Zebra |
Yes - Multiple |
|
Waveform |
Yes |
|
Vectorscope |
|
|
PIP |
No |
|
RGB Parade |
Yes |
|
Histogram |
Yes |
|
Horizon Indicator |
No |
|
Image Capture |
Yes with Dedicated Capture Button |
|
Dailies Recording/Playback |
|
|
Master Recording |
|
|
Wifi Streaming |
|
|
Custom LUTS |
Yes |
|
LUT Creation |
No |
|
LUT Downstream |
Yes |
|
LUT Import |
Yes |
|
Onion Skinning |
|
|
Image Overlay |
Yes |
|
Blue Only |
No |
|
Firmware |
User Upgradable. Current Version: 2.0 |
|
Audio Meters |
Yes |
Full HD 7-inch LCD Monitor with 1000 NITs Brightness
The sharpest daylight viewable field monitor available.
Model: MON-702
Input: SDI, HDMI
Output: SDI, HDMI
Display: 7-inch, 1920x1080, 1000nits with anti-reflective coating
Please Note: All prices are listed in Australian dollars and exclude insurance, shipping and GST.
